Controling Zone 2 on your X-series receiver/processor

The remote that comes with our X-series receivers and processors does not have a dedicated Zone 2 button.

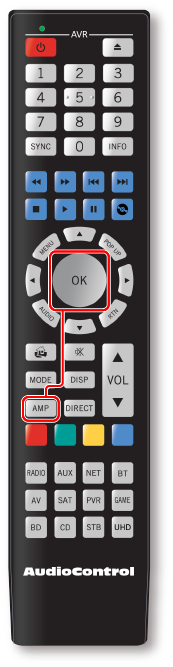

In order to put the AVR in Zone 2 mode, press the “AMP” and “OK” buttons on the remote at the same time.

The display will change to show Zone 2, and the volume and input information for that zone.  At this point you would be able to control that zone's source or volume by using the remote. You will also be able to turn the zone on or put into standby using the power button on the remote.

After 5 seconds with no input from the remote, the amplifier will return back Zone 1 control.
