Firmware updates for Director/Director Matrix DSP amplifiers.
This article refers to firmware updates for the D4600, D2800, M6800, M6400, M4800, & M4840 DSP amplifiers.

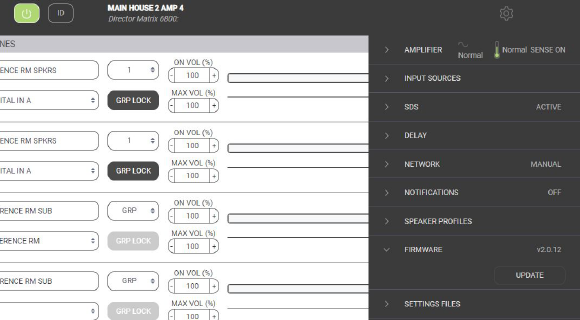

Download the firmware from the AudioControl website via the product page and log into the web interface by entering the IP address of the amplifier into a web browser (as mentioned in the above instructions). Once the web interface is displayed go to the gear icon in the upper right corner of the web interface and open it. This will present the settings menu. From this menu go to the Firmware tab and open it > select UPDATE > navigate to where you saved the firmware file on your computer and select the file. The update process will start.
Once the update reaches 100%, the amplifier will reboot, it will take about a minute. Once the amplifier is rebooted, close out your web browser and then power cycle the amp off and back on using the rear panel power toggle switch. Once the amplifier is powered back on, open your web browser and type in the IP address of the amplifier again to display the web interface.
If you need additional assistance, our Customer Service and Technical Support representatives are available Monday thru Friday 8am to 5pm PST. 425-775-8461.
