How do I access the web interface for my Director, CM 70 volt, and RS series amplifiers?
This article refers to accessing the web interface for the Director and Director Matrix DSP amplifiers, CM 70 volt, and RS500 and RS1000 subwoofer amplifiers.

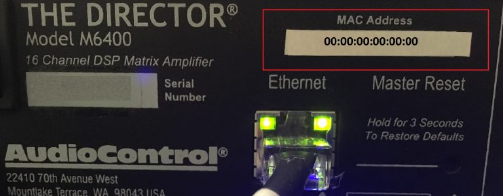

Connect the Director or RS amplifier to an existing DHCP network using the Ethernet port. The amplifier will obtain a local IP address from the DHCP server in your router. You will also want to make note of the amplifiers MAC Address which is on the back of the amplifier.
You will then need to scan your network for the amplifiers MAC Address using a network scanner, such as Advanced IP or Angry IP Scanner. After you have the unit’s IP address, type the address into your browser of choice and the Director or RS amplifiers web interface will be displayed.

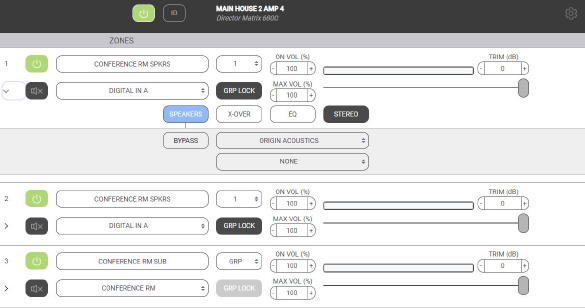

Firmware 2.0.xx:

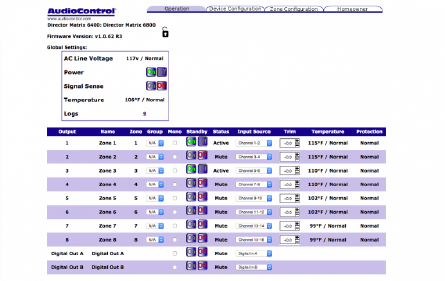

On the previous firmware 1.1.xx the Operations tab will be displayed:
If you plan on assigning a static IP address to your amplifier, please refer to this article:
